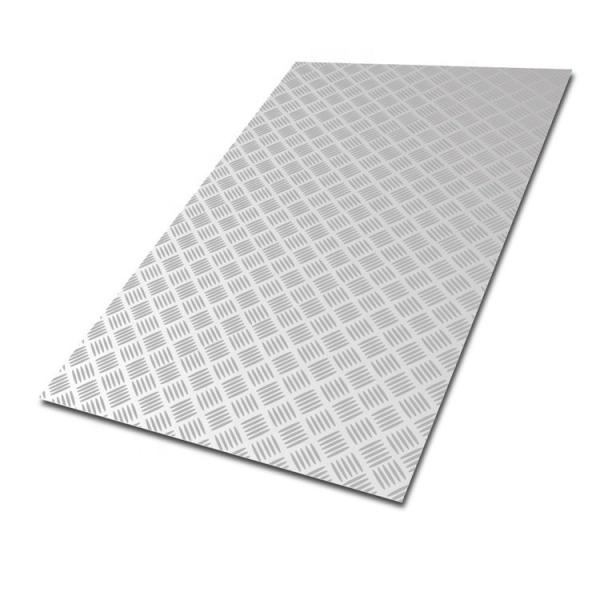

Construction Material H12 1060 3003 3105 5052 Embossed Alloy Aluminium Checker Sheet Anti-Skid Aluminum Checkered Plate
What Types of Aluminium Checker Plates Can We Supply?
1050/1060/1100 Aluminium Checker Plate: It is mainly used for flooring. The 1000 series aluminium tread plates are the most economic among the aluminium chequered plates.
3003 Aluminium Checker Plate: This type of checker plate has higher strength than 1000 series anti-skip checker plates. Meanwhile, it is antirust.
5052/5083/5754 Aluminium 5 Bar plates: The 5000 series aluminium plates has better strength, rust and corrosion protection than 3000 series aluminium plates. It is widely used for boat.
| Aluminium tread plate /aluminum checker plate |
| Aluminium Alloy | Thickness
(mm) | Width
(mm) | Length (mm) | Temper |
| A1050,A1050,A1070,A1100 | 1.0-10mm | 800-1900 | 1000-8000 | O,H12,H14,H16,H22,H24,H26 |
| A3003,A3004,A3105 | 1.0-10mm | 800-1900 | 1000-8000 | O,H12,H14,H16,,H22,H24,H26 |
| A5052,A5005,A5083,A5754 | 1.0-10mm | 800-1900 | 1000-8000 | O,H12,H14,H34,H32,H36,H111,H112 |
| Material process | CC AND DC |
| Customerize size | standard size :1000x2000mm/1200x2400/1220x2440/1250x2500/1500x3000mm |
| Size can be produced as per clients requirement |
| Surface | Mill finish,bright finish( five bar /two bar / one bar ) ,Anodizing,black coated |
| Tread plate form | sheet or coils as per customer requirement |
| Bar height | over 0.80mm |
| Quality Standard | ASTM B209,EN573-1 |
| MOQ per size | 2 tons |
| Payment Terms | TT OR LC OR DP at sight |
| Delivery time | Within 25 days after receipt the lc or deposit |
| Material Quality | Tension levelled ,flat ,Free of defects like oil stain,Roll Marks,Waves,Dents |
| scratches etc ,A+++ quality, production process passed sgs and bv inspection |
| Application | anti-slipping floor, tool box ,decoration ,truck body ,etc |
| Packing | Standard export worthy wooden pallets,and standard packing is about 2 tons/pallet |
| Pallet weight also can be as per client's requirement |
Properties of Aluminum tread plates
Aluminum tread plates ccording to the different classification of aluminum sheet alloy
1) the general tread aluminum alloy plate: 1060 aluminum plate for the plate from the processing of aluminum alloy pattern plate, able to adapt to the normal environment, low prices. Usually cold storage, flooring, packaging and more use of this pattern aluminum sheet.
2)Al-Mn alloy tread plate: 3003 as the main raw material processing, the aluminum plate, also known as rust-proof aluminum, the strength is slightly higher than the ordinary aluminum alloy pattern plate, with a certain anti-rust properties, but the hardness and corrosion resistance Less than 5,000 series of pattern plate, so the product is not strictly used in the anti-rust, such as truck models, cold storage floor.
3)aluminum-magnesium alloy tread plate: 5052 or 5083, such as 5000 series of aluminum as raw material processing, with good corrosion resistance, hardness, anti-rust performance. Usually used in special places, such as ships, cars lights, humid environment, the high hardness of aluminum, a certain load-bearing capacity.
In accordance with the different patterns of aluminum plate classification: pattern plate has a bar, two bars, three bars and five bars.
FAQ
1. How long will it take to execute my order?
Our normal produce time is 7-15 working days.but we have many models in stock
2. How much will the shipping cost be?
This will depend on the size and weight of your order and the method of shipping.
3. Do you provide samples?
Yes, we can provide samples . We can send the samples by TNT,DHL, FEDEX, EMS, UPS or to your warehouse
4. Do you have products in stock?
There are 600 tons stock for various size .pls kindly inform us what model you need , we will send stock details to you .
5. Can I visit you?
Sure, Pls let us know if you have a plan to visit our company, we will arrange it for you
